Application Note
Introduction
Materials and Methods
Omega Bio-tek’s 2-D Spin-Out swab is a unique collection device that consists of a basket with a swab securely attached to it’s cap, which has a barcode printed on it. To the outside end of the cap is a detachable flag with a barcode that matches the barcode on the cap. The basket also has the matching numbers of the barcode printed on the side that can be noted manually, if required.
Sixteen independent oral samples were collected using Omega Bio-tek’s 2-D Spin-Out Swabs. After sample collection, each 2-D Spin-Out Swab was re-inserted back into the basket; the flag detached from the cap and saved for record keeping. The 2-D Spin-Out Swab with the basket was placed in an individual well of the E-Z 96® Spin-Out Plate Adaptor in a 96-well deep well plate prefilled with lysis buffer. The integrated 2-D barcode on the cap can then be scanned using a top-down 2-D barcode reader, such as the FluidX Cabriolet. This allows for the identification of the sample location within the 96-well plate. The need to manually input a well location and sample ID into your laboratory information management system is completely eliminated.
The E-Z 96® Spin-Out plate adaptor’s unique design allows for samples to be raised and lowered into the lysis buffer. The samples are submerged in the lysis buffer with the adaptor in the lowered position, allowing for the incubation and and lysis of the sample. Then adaptor was then raised to lift the baskets with the swabs above the liquid level and centrifuged to recover all the residual lysate from the swabs. After centrifugation, 2-D Spin-Out swabs along with the Spin-Out plate adaptor was discarded. The 96-well deep well plate containing the lysate was moved to the Hamilton Firefly NIMBUS® 96 for further purification using Omega Bio-tek’s Mag-BIND® Blood & Tissue DNA HDQ 96 Kit (M6399). The workflow of the extraction process using 2-D Spin-Out swabs is outlined in Figure 1.
Figure 1. Complete extraction workflow using 2-D Spin-Out swabs.
The extracted DNA was quantified using Promega’s QuantiFluor® dsDNA system. Eight samples were randomly selected and real-time PCR was performed on triplicates of undiluted, 10-fold and 100-fold diluted DNA extracts to test for the suitability of DNA for downstream applications. Agilent’s Brilliant III 2X SYBR® mix and universal human primers were used following a standard amplification protocol on the ABI 7900.
Results

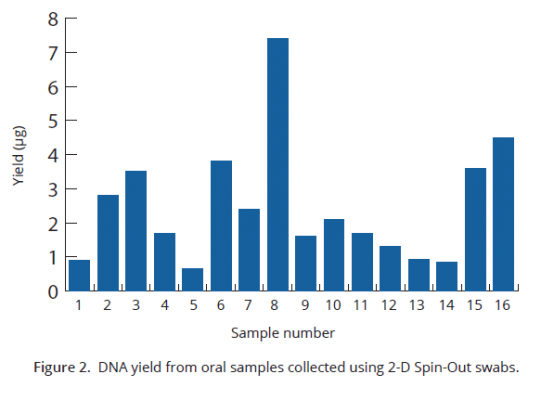

The DNA yield from the oral samples collected using the 2-D Spin-Out swabs is as shown in Figure 2. The average DNA yield was approximately 2.48 μg. Table 1 lists the average Ct values from triplicate experiments on the undiluted, 10X and 100X dilution of the purified DNA. There was no detectable fluorescence in the no template controls. The average ΔCt between the 10-fold and undiluted samples was lower than 3.3, indicative of the presence of inhibitors. As expected, the average ΔCt between the 100-fold and 10-fold diluted sample was approximately ~3.3, bringing the amplification efficiency close to 100%.
Conclusions
DNA obtained from the 2-D Spin-Out swab samples was of sufficiently high quality and suitable for a variety of downstream applications, such as real-time PCR. The 2-D Spin-Out swabs offer a reliable, non-invasive approach to sample collection and tracking, and along with the E-Z 96® Spin-Out device can be easily incorporated into most high throughput automation workflows.
