Pre-programmed, pre-filled, fully automated solution for extracting DNA from blood, buffy coat, saliva, or cells!
SKU#: PS6399-1-384PF (4 x 96 preps)
Please call us for pricing!
All Mag-Bind® kits can be automated on most programmable robotic platforms, liquid handlers or magnetic processors. Learn more.
Off-the-shelf product doesn’t suit your needs? We’ll work with you to develop a customized product. Learn more.
Dedicated applications support will consult with you to develop and implement an automated solution that fits your specifications. Learn more.
Scripts available for all Mag-Bind® Kits for most open liquid handlers and common magnetic processors including the MagBinder® Fit24. Visit Automated Solutions for more information.
The Mag-Bind® Blood & Saliva DNA LSP Kit is designed for the efficient and reliable purification of genomic DNA (gDNA) from blood, cells, or saliva samples, with the capability to process input volumes of up to 250 μL (blood), 500 μL (saliva), and 1 x 106 cells per sample in one to four 96-well plates with 50 to 200 μL elution volumes. This kit is automation-ready, featuring prefilled and barcoded reagent reservoirs and tubes for seamless integration with most open-ended liquid handling platforms, ensuring traceability, consistency, and high-quality results across large sample sets.
This workflow offers a fully automated solution for purifying DNA, after samples have been transferred to sample plates, reducing hands-on time while improving extraction efficiency and accuracy. The prefilled reagents eliminate the need for preparation and dispensing steps, enhancing ease of use. Barcoded reagent reservoirs and tubes are scannable to allow the instrument to recognize reagent placement on liquid handler decks. The magnetic particle-based purification system ensures fast and efficient binding, washing, and elution of DNA. Up to 250 μL of whole blood and up to 500 μL of saliva can be eluted in 50-200 μL of elution buffer. The purified DNA is of high quality, suitable for immediate use in downstream applications such as PCR, qPCR, digital PCR, and next-generation sequencing (NGS).
| Feature | Specifications |
|---|---|
| Sample Type | Blood, buffy coat, saliva, cells |
| Sample Volume | 250 uL, 100 uL, 500 uL, 1 x 106 cells (in 250 uL 1x PBS) |
| Technology | Magnetic Beads |
| Processing | Automated |
| Processing Time | ~ 2.5 hours (4 x 96 samples) |
| Elution Volume | 50 - 200 uL |
| Reservoir Material | Polypropylene |
| Reservoir Height | 44 mm |
| Footprint | ANSI/SLAS Compliant |
| For use with (equipment) | Hamilton Microlab® STAR™ |
| SKU No | PS6399-1-384PF | Available Separately |
|---|---|---|
| Purifications | 4 x 96 | |
| 96-well Sample Plates | 4 | |
| 96-well Tip Isolator Plates | 4 | |
| AL Buffer | 142 mL | AL Buffer |
| iHDQ Binding Buffer | 184 mL | |
| eVHB Buffer | 2 x 222 mL | |
| eSPM Buffer | 222 mL | |
| Elution Buffer | 2 x 210 mL | Elution Buffer |
| Mag-Bind® Particles HDQ | 4 x 2.4 mL | Mag-Bind® Particles HDQ |
| Proteinase K Solution | 4 x 2.4 mL | Proteinase K |
*Components available separately are not delivered in pre-filled reservoirs or tubes.

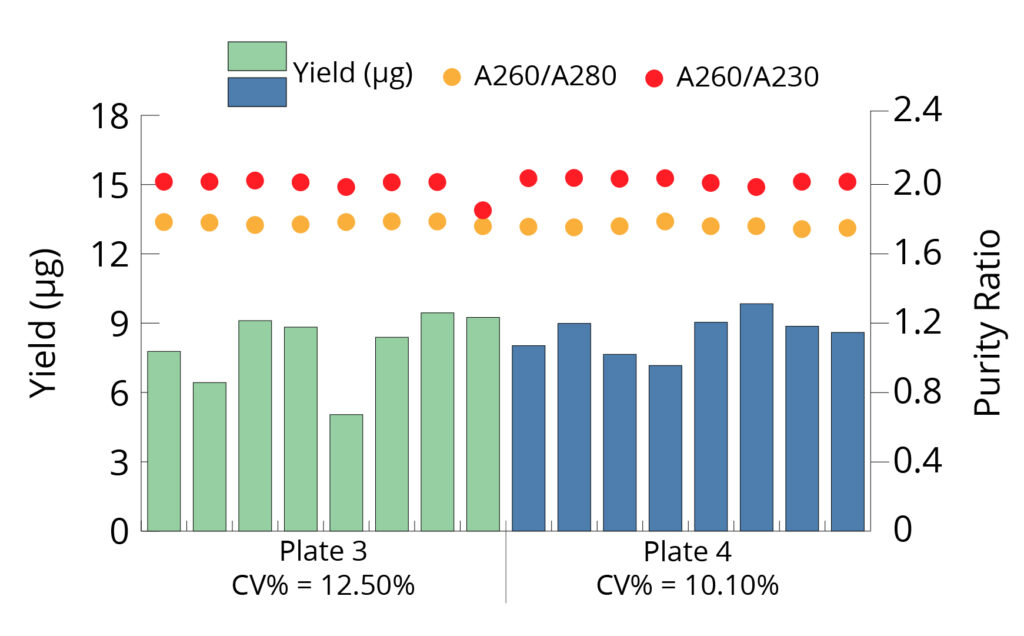

Figure 1. DNA was extracted from 500 µL stabilized saliva using the Hamilton Microlab® STAR™ and eluted in 100 µL. 4 x 96 sample plates were processed in ~2.5 hrs. High yields of high-quality DNA were consistently extracted across four plates.
