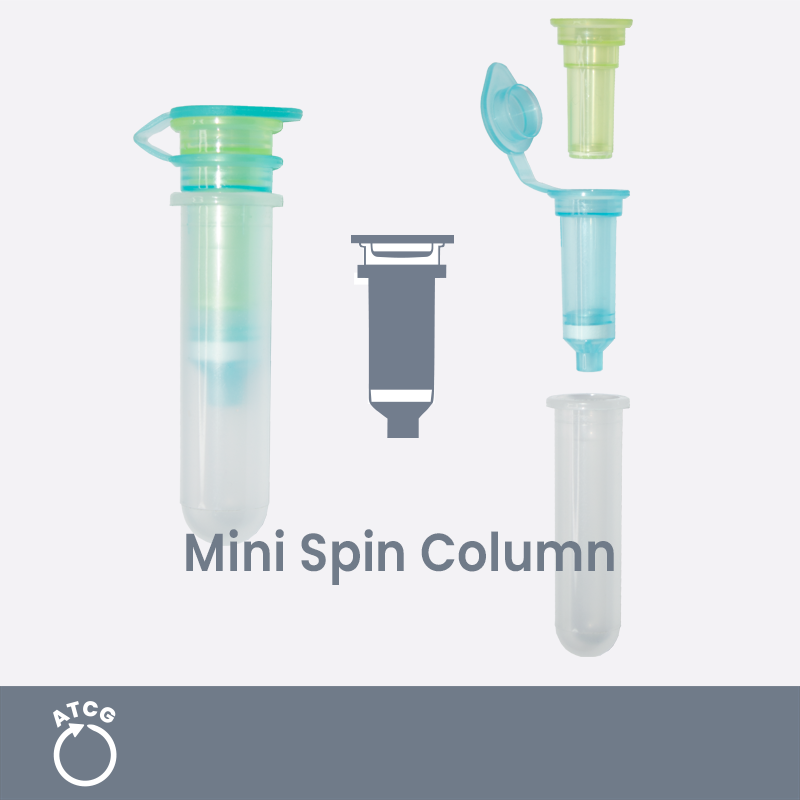

E.Z.N.A.® FastFilter Plasmid DNA Mini Kit

$0.00$341.30

  • Rapid – 9 Minute Processing time from a bacterial pellet
  • Unique – Lysate Clearance and DNA Binding in 1 step
  • Convenient – Lysate Clearance Column eliminates cellular debris pelleting and transfer step
  • Versatile – Process up to 5 mL bacterial cultures with different plasmid types and culture medias

The E.Z.N.A.® FastFilter Plasmid DNA Mini Kit is designed for rapid purification of high-quality plasmid DNA from up to 5 mL of culture following the alkaline-lysis method. The kit features an innovative and first-of-its-kind FastFilter Mini Column nested within a regular HiBind® DNA Mini Column to combine lysate clearance and DNA binding into one or two centrifugation steps depending on the culture volume. The protocol time is just 9 minutes when starting with bacterial pellet from up to 3 mL culture volume. The protocol time for culture volumes greater than 3 mL will be slightly longer due to two centrifugation steps for lysate clearance. Following the wash and elute steps, purified plasmid DNA is immediately ready for various downstream applications such as routine screening, restriction enzyme digestion, transformation, PCR, and DNA sequencing.

Typically, up to 5 mL overnight bacterial culture in LB or other suitable growth medium is centrifuged to pellet the bacterial cells. The cells are then lysed under alkaline conditions and subsequently neutralized to form white flocculent precipitate. Neutralized lysate is then transferred to a FastFilter Mini Column nested within a HiBind® DNA Mini Column. Upon adjustment of binding conditions, the lysate is centrifuged through this FastFilter HiBind® configuration to both clear the lysate and facilitate binding of DNA to the HiBind®
DNA Mini Column. The FastFilter Mini Column is discarded, and the HiBind® DNA Mini Column is subjected to two wash steps to remove salt and other contaminants. High-quality plasmid DNA is then eluted in low-salt elution buffer and is ready for use in a wide range of downstream applications mentioned above.

For Research Use Only. Not for use in diagnostic procedures.

FEATURESSPECIFICATIONS
Starting MaterialBacteria harboring high-copy or low-copy plasmid in LB culture medium
Starting Amount1-5 mL LB culture
Elution Volume50-100 µL
Processing modeManual (centrifugation or vacuum)
Throughput1-24
DNA binding technologySilica Mini Spin Column
Processing time9 minutes
Downstream ApplicationsRoutine screening, restriction enzyme digestion, transformation, PCR and DNA sequencing

ItemAvailable Separately
HiBind® DNA Mini ColumnsView Product
2 mL Collection TubesView Product
FastFilter Mini Column---
Solution IView Product
Solution IIView Product
N3 Buffer---
GBT Buffer---
HBC BufferView Product
DNA Wash BufferView Product
RNase AView Product
Elution BufferView Product

High Yield Across Various Plasmid Types and Culture Media

Figure 1. E.Z.N.A.® FastFilter Plasmid DNA Mini Kit is capable of handling diverse sample input conditions ranging from plasmid types, culture medium, and input culture volume. The plasmid yield my vary based on these conditions.

Comparison of Processing Time

Figure 2. Comparison of Plasmid Purification times (n=4) using kits from Omega Bio-tek, Company Z, or Company Q. The processing time was comparable using kits from Omega Bio-tek and Company Z at minimum culture volume and was lower by 2 min for Omega Bio-tek at maximum volume. The processing times shown are actual timed extractions including all pipetting, centrifugation, and bacterial culture pelleting steps.

Competior Analysis of Plasmid DNA Purification

Table 1. pGEM plsmid was purified DH5α cultures (n=4) using kits from Omega Bio-tek, Company Z, or Company Q following manufacturer’s recommended centrifugation protocol. Purified Plasmid DNA was eluted at 100 µL irrespective of the manufacturing kit used and quantified using Thermo Scientific’s NanoDrop™ 200c system. High Yield and Quality are not sacrificed for faster processing times.

High-Quality Plasmid DNA Suitable for Sequencing Reactions

Table 2. Plasmid DNA purified using the E.Z.N.A.® FastFilter Plasmid DNA Mini Kit was used in a 5 µL Sanger sequencing reaction. The sequencing reaction was analyzed on an Applied Biosystems 3730XL. The samples had an average CRL of 994 bp and an average QV20+ of 985 with a quality score greater than 20 (≤ 1% probability of error in base calling).

Complete Digestion with Various Restriction Enzymes

Figure 3. pGEM Plasmid DNA from overnight bacterial cultures was purified using the E.Z.N.A.® FastFilter Plasmid DNA Mini Kit and analyzed by restriction digestion. Complete digestion was observed for the various restriction enzymes tested.

High Yield and Quality

Figure 4. pGEM Plasmid DNA from overnight bacterial cultures was purified using the E.Z.N.A.® FastFilter Plasmid DNA Mini Kit and analyzed by gel electrophoresis to illustrate the resulting well-defined band.
